Nd:YAG laser ordered by the University of Leon, UANL, Mexico
Pulsed Nd:YAG laser system -
request a quote

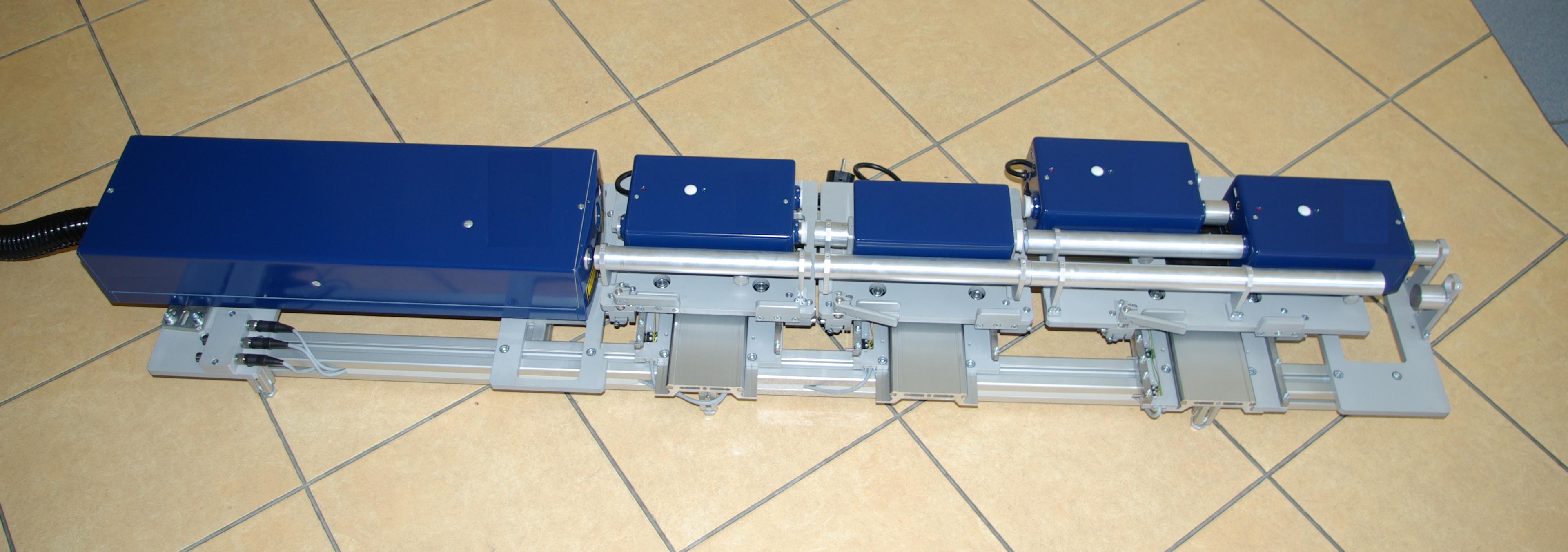

Laser system comprises
1. Pulsed Nd:YAG laser model LQ929;
2. Second Harmonic Generator model LG101;
3. Third Harmonic Generator model LG103;
4. Fourth Harmonic Generator model LG103;
On the mounting frame there is a switching platform to use 532, 355 and 266 nm
radiation.
LG101
LG103 (3ω)
LG103 (4ω)
HS unit
LQ 929
-------------------------------------------------------------------------------------
1064 nm
LG103 (3ω)
LG103 (4ω)
LQ 929 — LG101 --------------------------------------------------- HS unit
--------------- 532 nm
LG103 (4ω)
HS unit
LQ 929 — LG101 — LG103 (3ω)
---------------------------------------------------------- 355 nm
LG103 (3ω)
HS unit
LQ 929 — LG101 ----------------------------LG103 (4ω)----------------------------------
266 nm
1. Pulsed Nd:YAG laser model LQ929
PRR 10 Hz
Output energy at 1064 nm ≥ 1400 mJ
at 532 nm ~ 800 mJ (operated with SHG LG101)
at 355 nm ~ 300 mJ (operated with THG LG103)
at 266 nm ~ 180 mJ (operated with FHG LG103)
Pulse width at 1064 nm 8…11 nsec
Beam diameter ≤ 11 mm
Divergence at 1064 nm ~ 1.5 mrad
Stability at 1064 nm +/- 2.5%
Jitter +/- 1 nsec
Power consumption (single phase,
220 V+/-10%, 50/60Hz), VA, less than 1000
Dimensions, mm
Laser Head 600 x 220 x 115
Power Supply 770 x 340 x 670
