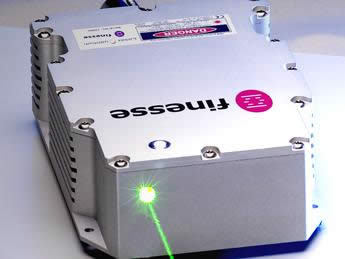

DPSS Laser Finesse from Laser Quantum is affordable pumping source for Trestles Ti:Sapphire lasers
The main technical information about Trestles Finesse laser you can find in the brochure.
|Finesse 4W -
Finesse 5W -
Finesse 6W -
Finesse Tech Sheet -
Main parameters of the Ti :Sapphire laser Trestles Finesse:
Tuning range: 710-850 or 730-910nm
Output power up to 500 mW with pump power up to 4W
Output power up to 700 mW with pump power up to 6W
Beam quality: TEMoo
Polarization: linear horizontal
Pulse duration <100 fs
Repetition rate 80 MHz
Laser Dimensions: length=565mm; width=436mm; height=192mm
Wavelength tuning provided by motorized USB-controlled tuning slit
Electromagnetic starter option.
Tuning range can be adjusted using custom optics. Typical tuning curves for 4W pump laser are shown in the brochure. With 4W pump laser and long-wave mirrors set Trestles Finesse can be tuned up to 940nm. With 6W pump laser wavelength tuning range going up to 980nm.
Trestles Finesse can be easily customized at the factory for required tuning ranges and pulse duration.
Del Mar Photonics
Finesse lasers are used as a pump lasers for a) stand alone Ti:Sapphire oscillators Trestles, b) integrated one-box oscillator Trestles Finesse and c) a part of one box Ti:Sapphire oscillator/amplifier Teahupoo.
Trestles Femtosecond Ti:Sapphire
Trestles Finesse Ti:Sapphire oscillator -
Amplified Ti:Sapphire System Teahupoo
20/50/100 fs oscillators - FemtoStart
High Power Green DPSS Lasers
request a quote
|Spatial Mode||TEM00, M2 < 1.2|
|Power Stability||<+/- 2 % over 1 hour|
|Noise||<3% peak to peak|
|Beam Diameter||<2mm at output aperture|
|Polarisation||>100:1, Vertical or Horizontal (please specify with order)|
|Laser Head Size(mm3)||127x110x297|
|Power supply||2U high 19" rack|
|Control||Front panel / RS232|
|Power requirement||100 - 240 VAC, 50 / 60 Hz Max 400W|
HPG5000 is suitable for pumping Ti:Sapphire lasers
Del Mar Photonics offer variety of green lasers for wide range of applications. When you ask for a quote, please indicate your requirements and/or application, as the cost of DPSS lasers of the same output power depends on the power stability and noise.
We can offer green lasers with different specifications.
For example we have top of the line laser for Ti:Sapphire pumping at the best prices:
This model already include a water chiller that can be used also to cool Ti:Sapphire crystals
If you want to pay less we can offer another model
You will need additional chiller to cool the Ti:Sa crystal
For applications other than Ti:Sapphire pumping we can offer many other DPPS lasers:
and many others.
So please let us know required specifications or choose the model you want us to quote.
DPSS 532 nm 8W laser DMPV-532-8a (532nm Diode Pumped Solid State Green Laser 8000mW)
Model: DPSS DMPV-532-8a (532nm-Green Laser-8W) -
|Output Power (W)||8|
| Beam Mode
|Spectral Linewidth (nm)||<0.1|
|Beam Quality (M2 factor)||<1.2|
|Beam Divergence (full angle, mrad)||2.0|
|Beam Diameter at Aperture (mm)||<3.0|
|Power Stability (RMS, over 8 hours)||<5%|
|Aperture Position (mm)||84|
|Laser Head Dimensions (L×W×H, mm)||320 x120 x105|
|External Modulation||5V TTL/5V Analogue|
|Modulating Repetition||30KHz TTL/10KHz Analogue|
|Warm-up Time (minutes)||<15|
|Operation Temperature (°C)||18~30|
|Expected Lifetime (hours)||>10000|
|Warranty Time||1 year|
DPSS 532 nm 1W laser DMPV-532-1 (532nm Diode Pumped Solid State Green Laser 1000mW)
DPSS 532 nm 3W laser DMPV-532-3 (532nm Diode Pumped Solid State Green Laser 3000mW)
DPSS 532 nm 8W laser DMPV-532-8s (532nm Diode Pumped Solid State Green Laser 8000mW)
Red Green Blue DPSS
Diode end-pump green lasers (532nm) and infrared lasers (1064nm)
Crystals and optics for DPSS laser manufacturing
DPSS laser kits
DPSS DMPE-532 green lasers
High quality green laser for pumping Ti:Sapphire lasers DPSS DMPLH
DPSS DMPLH lasers
| Trestles LH Ti:Sapphire
Trestles LH is a new series of high quality femtosecond Ti:Sapphire lasers for applications in scientific research, biological imaging, life sciences and precision material processing. Trestles LH includes integrated sealed, turn-key, cost-effective, diode-pumped solid-state (DPSS). Trestles LH lasers offer the most attractive pricing on the market combined with excellent performance and reliability. DPSS LH is a state-of-the-art laser designed for today’s applications. It combines superb performance and tremendous value for today’s market and has numerous advantages over all other DPSS lasers suitable for Ti:Sapphire pumping. Trestles LH can be customized to fit customer requirements and budget.
spot in our Femtosecond lasers training
workshop in San Diego, California. Come to learn how to build a
femtosecond laser from a kit
|New laser spectrometer
T&D-scan for research that
demands high resolution and high spectral
density in UV-VIS-NIR spectral domains - now available with
new pump option!
The T&D-scan includes a CW ultra-wide-tunable narrow-line laser, high-precision wavelength meter, an electronic control unit driven through USB interface as well as a software package. Novel advanced design of the fundamental laser component implements efficient intra-cavity frequency doubling as well as provides a state-of-the-art combined ultra-wide-tunable Ti:Sapphire & Dye laser capable of covering together a super-broad spectral range between 275 and 1100 nm. Wavelength selection components as well as the position of the non-linear crystal are precisely tuned by a closed-loop control system, which incorporates highly accurate wavelength meter.
spot in our CW lasers training
workshop in San Diego, California. Come to
learn how to build a
Ti:Sapphire laser from a kit
Femtosecond Ti:Sapphire oscillators and amplifiers from Del Mar Photonics
Do you plan to build a femtosecond set up based on Ti:Sapphire laser?
We offer several oscillator and amplifier options:
Femtosecond Ti:Sapphire Oscillator
1. If you already have a CW pump laser or plan to buy specific model and need only Ti:Sapphire oscillator we can offer our stand alone Ti:Sapphire lasers Trestles models, that do not include pump laser and can be customized for any suitable CW pump.
Please indicate required pulse duration (standard models have 20 fs, 50 fs and 100 fs pulses) and tuning range. Let us know what kind of pump laser you have (make/model) so we can confirm what output parameters can be achieved.
2. If you do not have a pump laser and want to buy complete system we can
offer you one of the following:
One-box system Trestles Finesse that include Trestles mini Ti:Sapphire oscillator and built in DPSS pump laser
When choosing specific Trestles Finesse model please indicate required CW pump power (4W or 6W), Ti:Sapphire pulse duration and required tuning range (or tuning range, where you want to achieve maximum performance)
Tuning range can be customized at the factory by choosing one of standard or custom made optics set. Typical tuning curves for 4W CW pump laser for two standard optics sets are shown in the Trestles Finesse brochure. For example, with 4W CW pump laser and long-wave mirrors set tuning range can be extended up to 940nm. With 6W CW pump laser tuning range can be extended up to 980nm.
Femtosecond Ti:Sapphire Amplifier
1. We offer integrated oscillator/amplifier system Teahupoo Rider. Teahupoo Rider is a fully-integrated all-in-one-box system that includes Trestles Finesse oscillator or Buccaneer SHG diode-pumped fiber oscillator, pulse stretcher, regenerative amplifier pumped by multi kHz Nd:YAG pump laser and pulse compressor. Teahupoo Rider has a factory preinstalled repetition rate of 2, 5 or 10kHz and ideal for low cost femtosecond micromachining systems, OPA pumping, ultrafast spectroscopy and variety of applications in life sciences.
2. If you already have a Ti:Sapphire oscillator, we can offer you stand alone Ti:Sapphire amplifier. Two standard models are available: Wedge M multipass or Wedge R regenerative.
Each amplifier is customized to the customer's amplifier pump laser.
2. Custom Teahupoo
Rider systems with a pump laser of your choice are also available. Depending
on the required specifications we can recommend a pump laser and make required
adjustments for optimum performance.
The following specifications can be achieved:
Repetition rate: single pulses, 10 Hz up to 10kHz
Pulse duration: 100fs, 50fs, 30fs, <30fs
Pulse energy: from 100 mJ per pulse to few mJ per pulse
Tunability: both fixed wavelength and tunable options are available - please indicate required tuning range.
