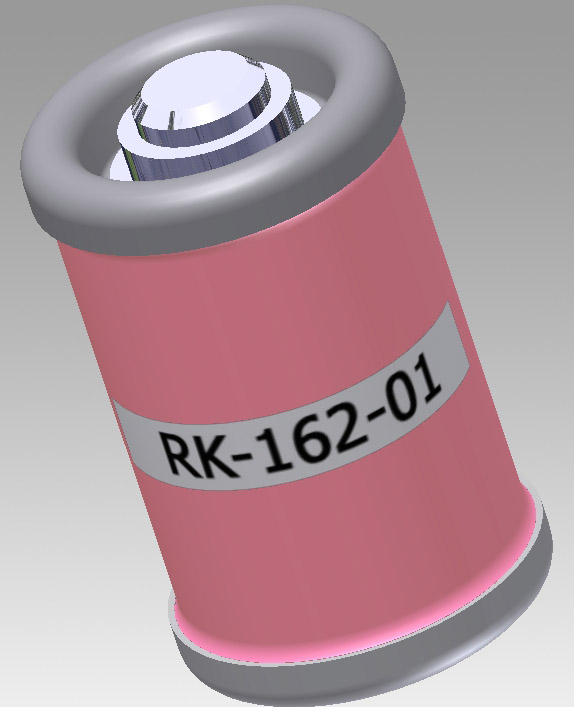

RK-162-01 Untriggered Spark Gap
Type model: RK-162-01 untriggered spark gap request a quote
Dynamic Breakdown Voltage: 2.8-3.3 kV
Average switching power: 30-80 W
Pulse current: 0.8-2.5 kA
Diameter: 28.5 mm
Height: 46 mm
Drawings - Typical Certificate of Conformity - Untriggered Spark Gaps Datasheet
