Triggered Three-Electrode Spark Gap Switches are ceramic-metal sealed off gas
discharge trigatron-type devices with a co-axial trigger electrode. These Gas
Discharge Tubes contain no mercury and, due to an advanced design, feature high
reliability and a long lifetime being operating under wide range of
environmental conditions.
Maine applications:
- pulsed installation for processing materials
- installations with plasma focus
- pulse power supplies for lasers and other pulse equipment
- medical apparatus such as lithotriptors and defibrillators
- processing systems for petroleum wells
Triggered Spark Gap Switches for voltages from 0.6 to 40 kV at pulse repetition
rate from 0.1 to 200 Hz.
Type model: RU-62 triggered spark gap -
request a quote
Anode Voltage: 4-10 kV
Commutated energy (max): 23 (300) J
Pulse current: 4/16 kA
Frequency: 50 Hz
Diameter: 55 mm
Height: 36 mm
Part number: RU-62-TSG

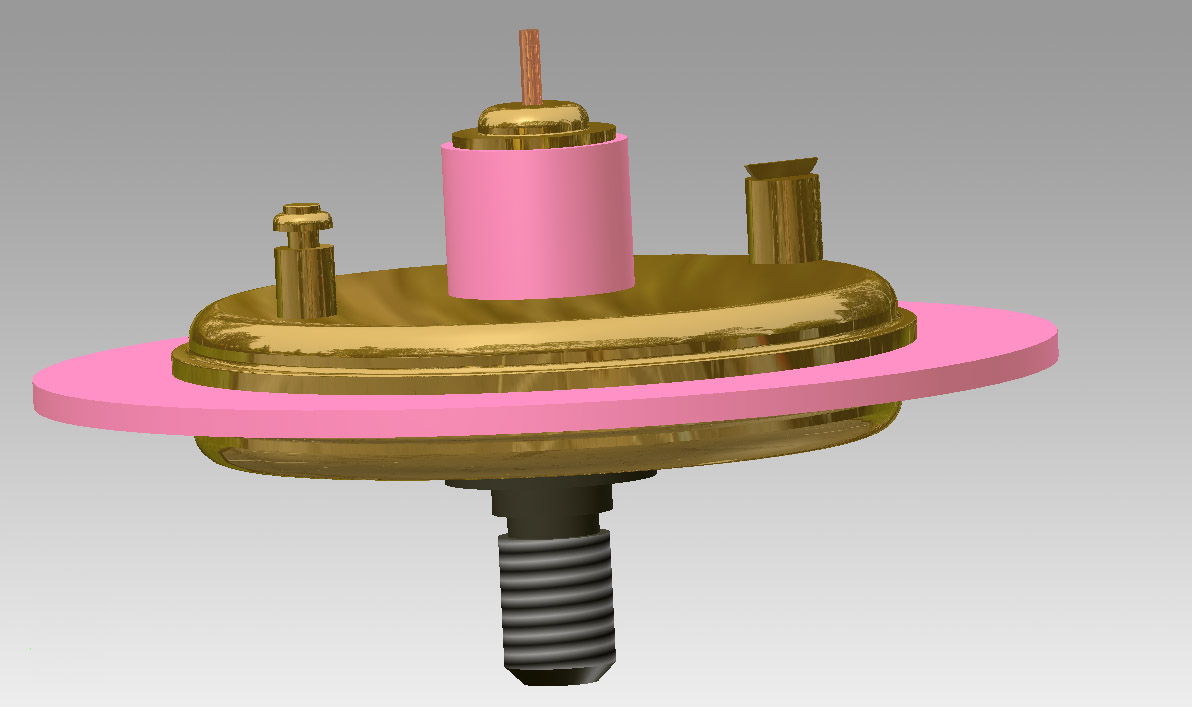

Type model: RU-69 triggered spark gap
-request
a quote
Anode Voltage: 2-4 kV
Commutated energy (max): 4 (400) J
Pulse current: 4/16 kA
Frequency: 10 Hz
Diameter: 55 mm
Height: 36 mm
Part number: RU-69-TSG
Type model: RU-77 triggered spark gap -
request a quote
Anode Voltage: 10-12 kV
Commutated energy (max): 0.2 (4) J
Pulse current: 0.8/4 kA
Frequency: 0.1-20 Hz
Diameter: 21 mm
Height: 40 mm
Part number: RU-77-TSG
