The autocorrelation technique is the most common method used to determine
laser pulse width characteristics on a femtosecond time scale.

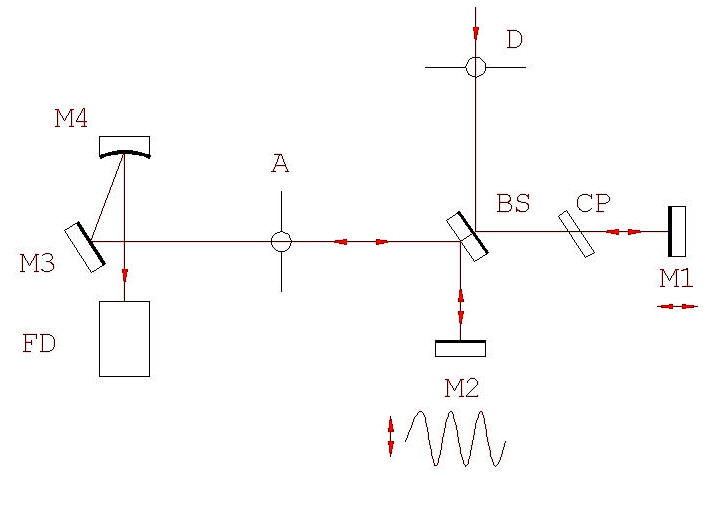

The basic optical configuration of the autocorrelator is similar to that of an interferometer (Figure.1). An incoming pulse train is split into two beams of equal intensity. An adjustable optical delay is inserted into one of the arms. The two beams are then recombined within a nonlinear material (semiconductor) for two photon absorption (TPA). The incident pulses directly generate a nonlinear TPA photocurrent in the semiconductor, and the detection of this photocurrent as a function of interferometer optical delay between the interacting pulses yields the pulse autocorrelation function. The TPA process is polarization-independent and non-phasematched, simplifying alignment.
The two beams propagate in a collinear fashion (interferometric configuration). This configuration results in an autocorrelation signal that is on top of a constant background.
This background is produced by TPA photocurrent resulting from the portions of the scan during which the pulses are not overlapped.

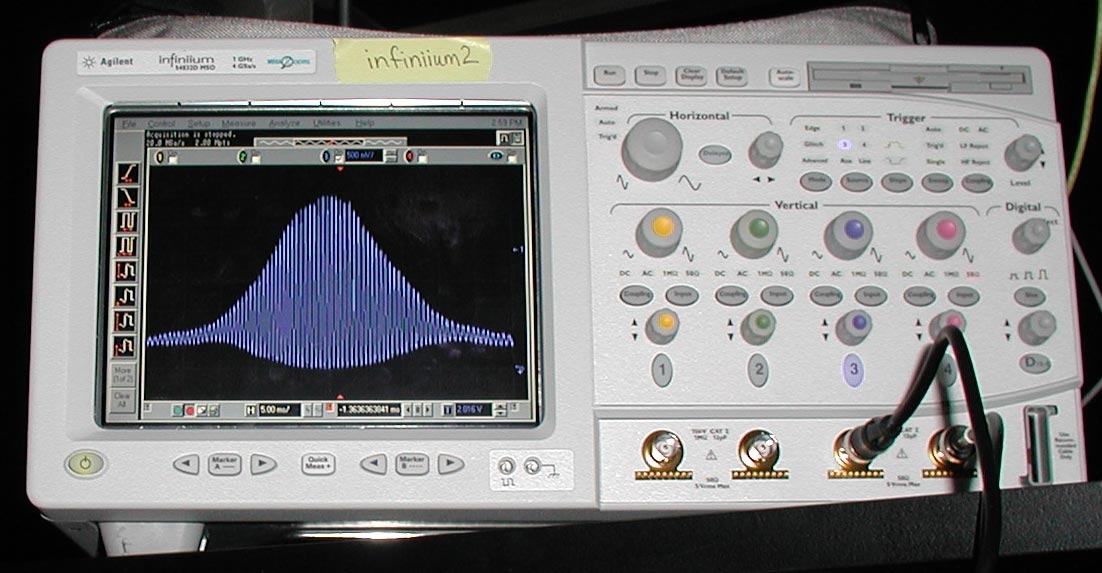

The Reef RT AA-10DM autocorrelator has been specifically designed to measure the width of pulses from femtosecond lasers. For the measurement of laser pulses the only other item you need is an oscilloscope. Although not necessary, a storage oscilloscope is convenient when operating in the interferometric mode since it allows you to calibrate the display directly using the interference fringes that make up the pulse envelope.
