Customer inquiry:

Please, send price info for FD-SF-07 - Resonant Frequency Doubler for CW Single-Frequency Lasers
We would like to use it with a 1 W Ar laser at 488 nm.

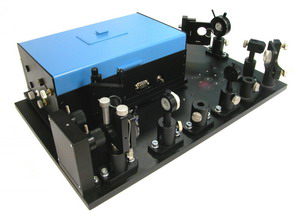

Resonant Frequency Doubler for CW Single-Frequency Lasers FD-SF-07 - request a quote

Resonant frequency doubler, model FD-SF-07, for CW single-frequency lasers ((Ti:Sapphire, Dye, Ar, DPSS etc.) opens new possibilities for more efficient laser wavelength conversion in the visible and near IR ranges into the blue and UV domains. Optimised resonator of FD-SF-07 in combination with high-quality mirrors ensures relatively high level of output second-harmonic power. Pumped with 1 W fundamental radiation power the doubler outputs: more than 250 mW within the 350-475 nm range (for 700–950-nm input), > 200 mW within the 275-350 nm range (for 550–700-nm input), and > 150 mW within the 244-275 nm range (for 488–550 nm range). Maximum conversion efficiency of the fundamental radiation into the second harmonics reaches 40% for single-frequency Ti:Sapphire pump laser (810 mW blue output at 2W@800nm input) and 20% for single-frequency Ar/Yb:YAG pump lasers (500 mW UV output at 2.5W green input).

Related products:

DPSS DMPLH lasers
4W/6W DPPS Green Laser - Compact pulsed Nd:YAG lasers
Green laser > 5 Watts for military application
Femtosecond DPSS Lasers
Diode pumped solid state lasers operating at 457 nm and 450 nm - buy from online store
DPSS 532 nm 1W laser DMPV-532-1 (532nm Diode Pumped Solid
State Green Laser 1000mW)
- buy from online store
DPSS 532 nm 3W laser DMPV-532-3
Red Green Blue DPSS lasers



Flagship model of 15-kHz-linewidth CW Ti:Sapphire laser TIS-SF-777
CW single-frequency ring Ti:Sapphire laser model TIS-SF-07
Frequency-stabilized CW single-frequescy ring Dye laser DYE-SF-077
Resonant Frequency Doubler for CW single-frequency lasers, model FD-SF-07
Combined CW Ti:Sapphire/Dye laser with intracavity frequency doubling, model TIS/DYE-FD-08
Combined CW single-frequency laser system based on Ti:Sapphire and Dye laser TIS/DYE-SF-07
Tekhnoscan introductory brochure

President and CEO of Tekhnoscan Sergey Kobtsev and President and CEO of Del Mar Photonics Sergey Egorov shaking hands after reaching partnership agreement during Photonics West 2007 in San Jose, California

President and CEO of Tekhnoscan Sergey Kobtsev and President and CEO of Del Mar Photonics Sergey Egorov
shaking hands after reaching partnership agreement during Photonics West 2007 in San Jose, California

Del Mar Photonics - request additional information - Attend training workshop in San Diego, California

Selected Publications about Laser Products of Tekhnoscan for two last years

S.Kobtsev, V.Baraoulya, V.Lunin. Ultra-narrow-linewidth combined CW Ti:Sapphire/Dye laser for atom cooling and high-precision spectroscopy. Proc. SPIE, "Solid State Lasers XVI: Technology and Devices", 2007, v. 6451, paper 64511U (Photonics West, LASE-2007, 22-25 Jan 2007, San Jose, USA). (568 kB)

S.Kobtsev, V.Lunin. Resonant doubler with a 2-THz automatic quasi-smooth scan range for widely tunable CW single-frequency lasers. Proc. SPIE, "Nonlinear Frequency Generation and Conversion: Materials, Devices, and Applications", 2007, v. 6455, paper 645517 (Photonics West, LASE-2007, 22-25 Jan 2007, San Jose, USA). (385 kB)

S.M.Kobtsev, V.I.Baraulya, V.M.Lunin. Combined CW single-frequency ring Dye/Ti:Sapphire laser. Quantum Electronics, 2006, v. 36, N 12, pp. 1148 - 1152 (1022 kB)

A.V.Charukchev, S.M.Kobtsev, S.V.Kukarin, V.A.Malinov, N.V.Nikitin, O.G.Okhotnikov. Diode-pumped femtosecond master Yb:KYW laser for multi-terawatt Nd-glass facility PROGRESS-P. XII Int. Conf. "Laser Optics", June 2006, St.Petersburg, Tech. Prog., p. 40, ThR1-p18, 2006.

S.M.Kobtsev, A.O.Zavyalov. Efficient second-harmonic generation of CW radiation in an external optical cavity using non-linear crystal BIBO. XII Int. Conf. "Laser Optics", June 2006, St.Petersburg, Tech. Prog., p. 43, ThR1-p58, 2006.
